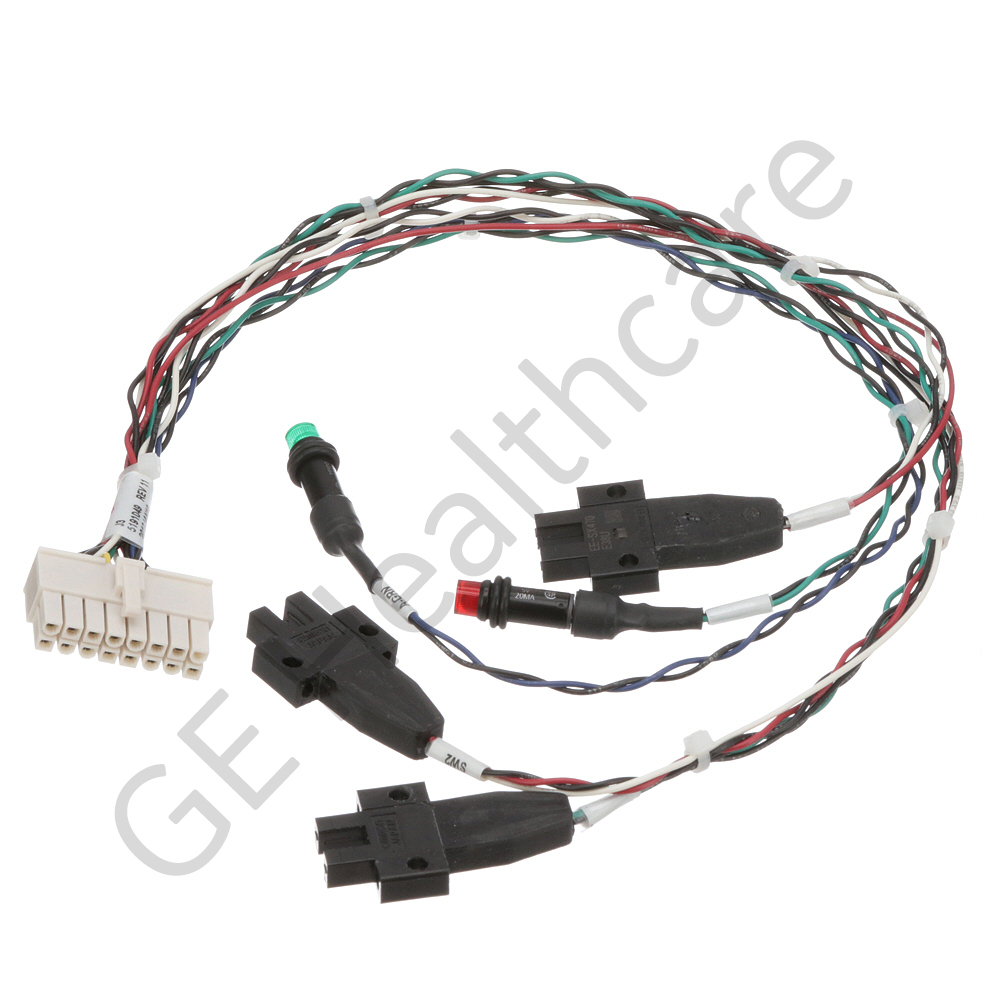

Harness LED and Switch Low Profile Carriage Assembly
| 5191049 | |
| New | |
| Magnetic Resonance Imaging | |
| Discovery 750 3.0T | |
| GE Healthcare | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview
This Harness LED and Switch Low Profile Carriage Assembly (LPCA) consists of 3 Optical Switches with 2 Red & Green LED indicators which are connected through a 26 AWG cable harness to a 16 Pin connector. The harness is used in the main assembly of MR/PET LPCA. The assembly is made up of high quality optical switches and LED indicators that assures reliable operation and long service life as the terminals of the switches & LEDs are insulated with Epoxy amd heat shrink tubings respectively. The switches and indicators comes with labelling information and mounting provisions for easy identification and mounting during installation procedure. The wire pairs of this assembly are twisted together with 1 twist per 25 mm spacing and are holded with each other using equally spaced tie wraps. This assembly is compatible with GE's Discovery 750 W 3.0T, Discovery 750W GEM 3.0T, Discovery 750 3.0T MRI systems. The material will be shipped in suitable packaging to give adequate protection during transit.
