Shaft for Vertical Brake
| 46-177236P1 | |
| New | |
| X-Ray | |
| Precision 500D | |
| GE Healthcare | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

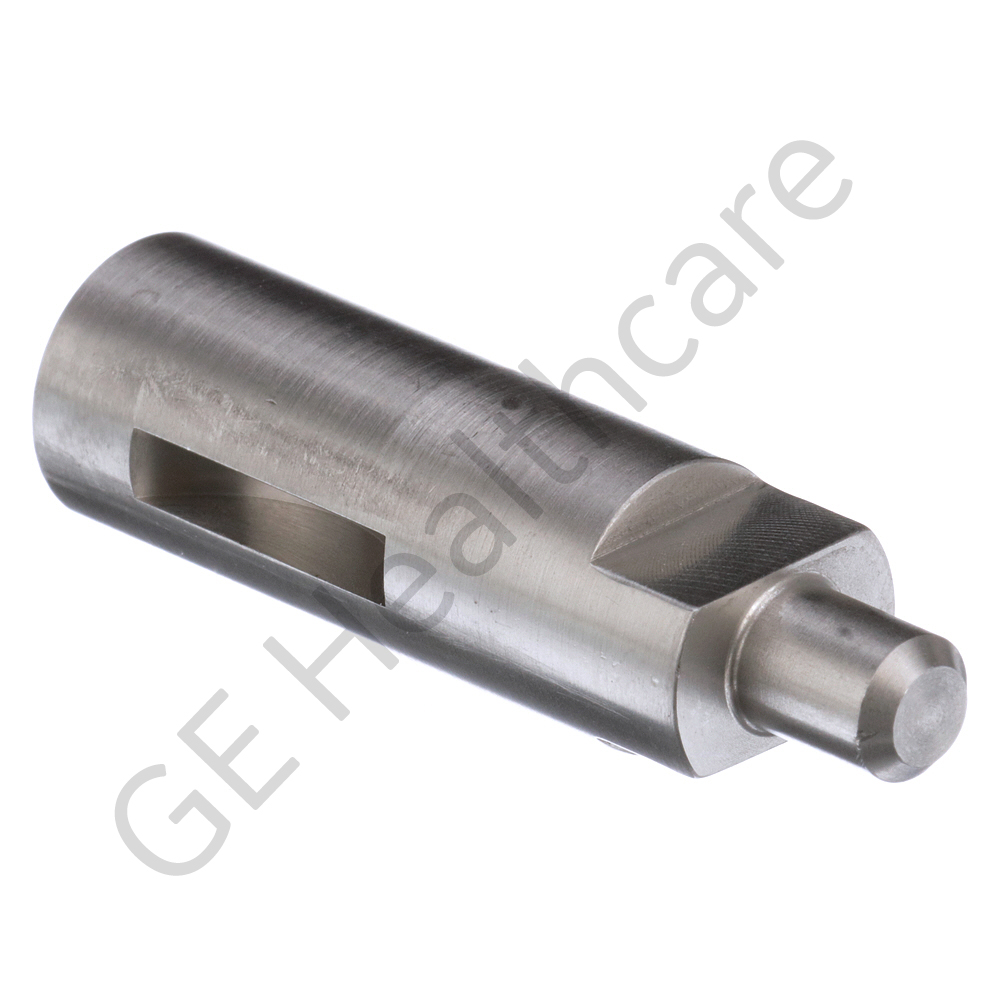

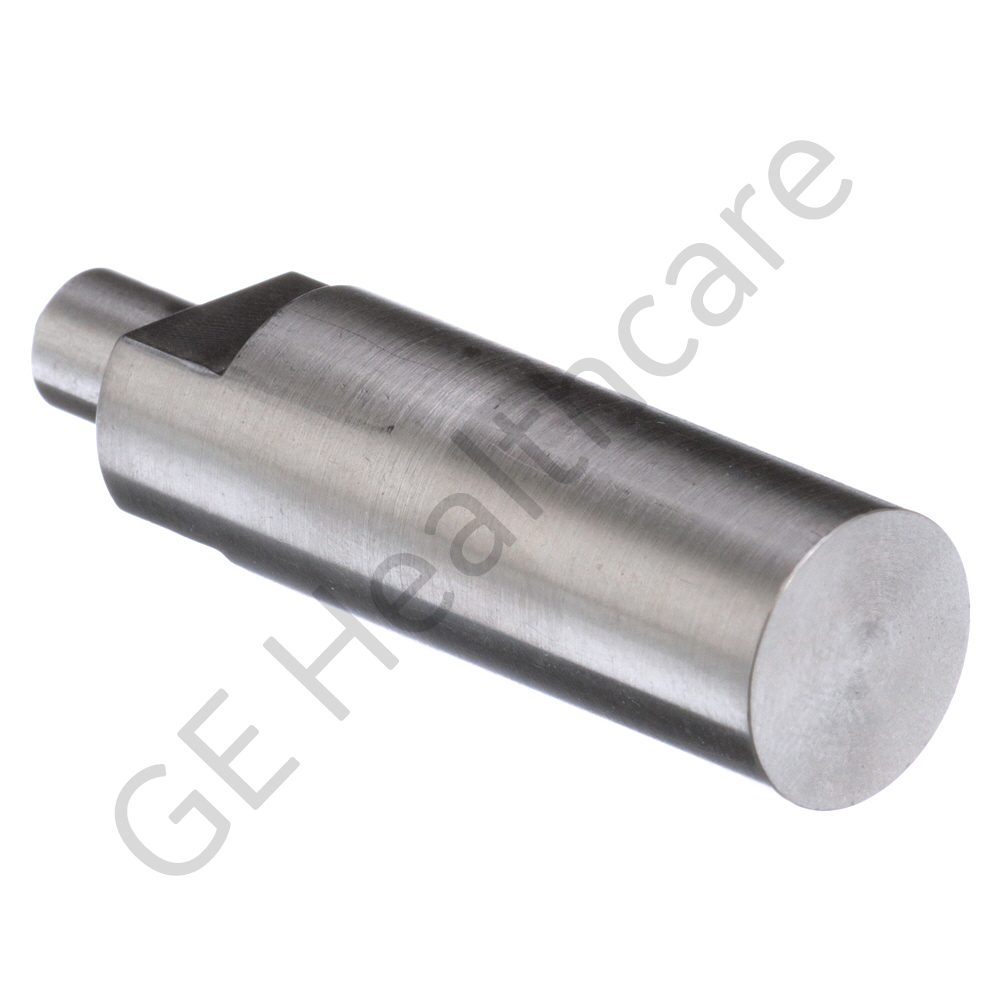

This Vertical Brake Extension Shaft is a 1.80 inch long cylindrical rod which is machined out of AISI 304 Stainless Steel rod which is a low carbon, non-magnetic steel with excellent corrosion resistance and good mechanical properties. The shaft is precisely machined with a woodruff key way on its major diameter and comes with a slotted end of 0.24 inch length along with a 0.32 inch long pin on the other end. The 0.247 inch diameter pin of this shaft comes with 0.04 X 45 Degree chamfer that aids in easier installations. Removal of internal stresses through annealing and uni-construction design of the shaft assures good toughness and reliable operation during demanding load conditions. This non-magnetic stainless steel shaft can be used in the XT suspension assemblies which are used along with GE's X-Ray Systems. The item will be shipped in suitable packaging to provide adequate protection during transit.
