Disconnect Box 1.5T-Resonant Shield & Head Power Splitter
| 2336560 | |
| New | |
| Magnetic Resonance Imaging | |
| Signa HD 1.5T | |
| GE Healthcare | |
| GE HealthCare | |
| N/A | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

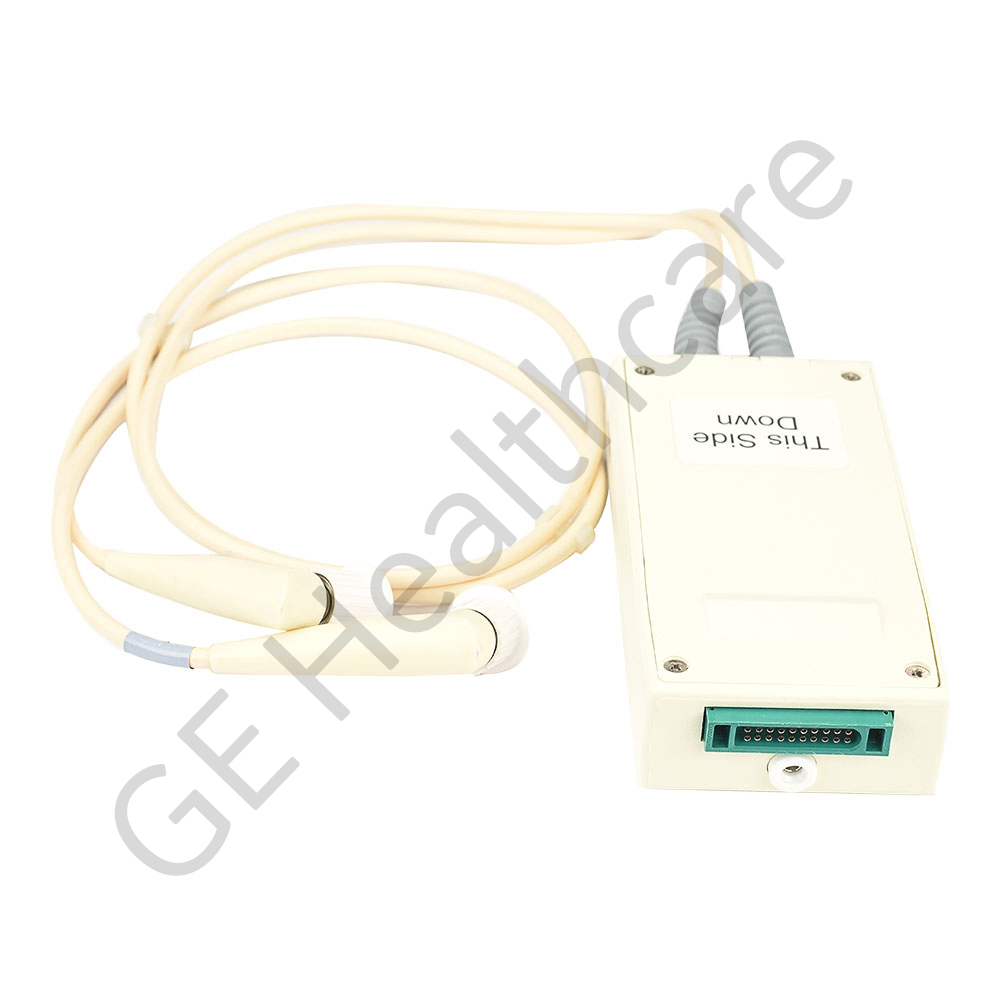

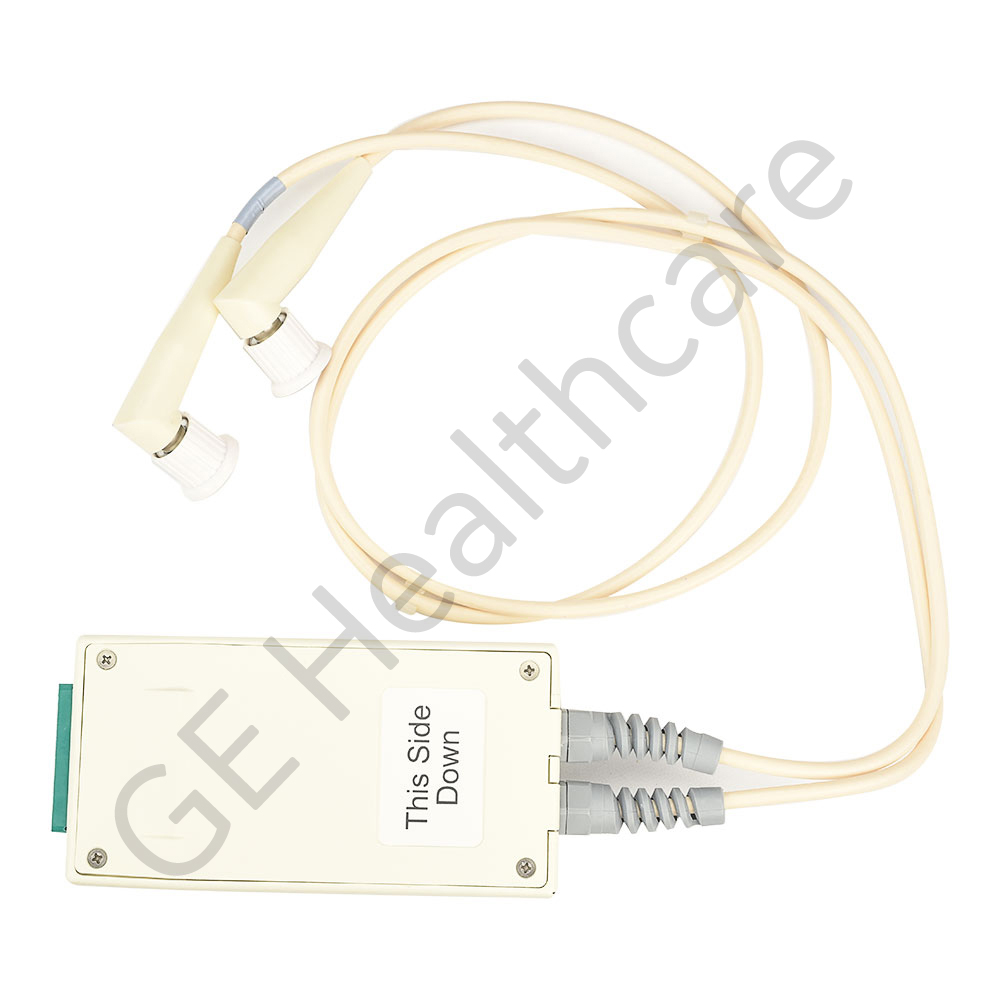

The Disconnect Box 1.5T-Resonant Shield & Head Power Splitter consists of 1.5T Split Head Coil QD (quick-disconnect) Box, a female banana jack, cable clip, required labels, screws, washers and molded housing with its covers. These parts are assembled together to form the complete assembly. The 1.5T quick-disconnect box is a cable trap which separates the RF ground from the system to the head coil and also acts as a power splitter to provide 0 and 90 degree half power to the head coil to form a quadrature polarization. This cable trap eliminates the standing wave on the ground that can be picked up from the environment. A RF open circuit is created by tuning the ground shield of the cable in the quick-disconnect box to 63.86 MHz. This assembly can be used with Signa HD 1.5T systems.
