Detector Memory Board Assembly - RoHS
| 2285540-2 | |
| 2285540 | |
| New | |
| Computed Tomography (CT) | |
| Lightspeed 16 | |
| GE Healthcare | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

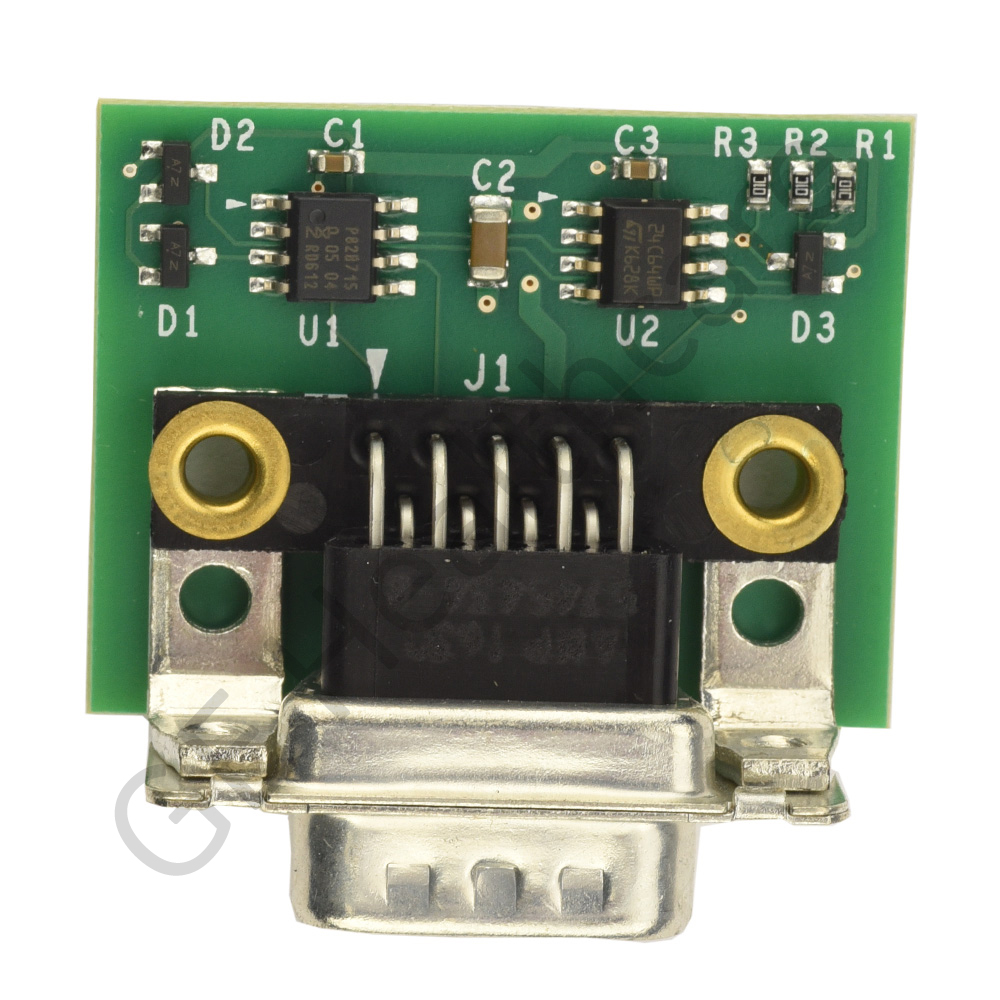

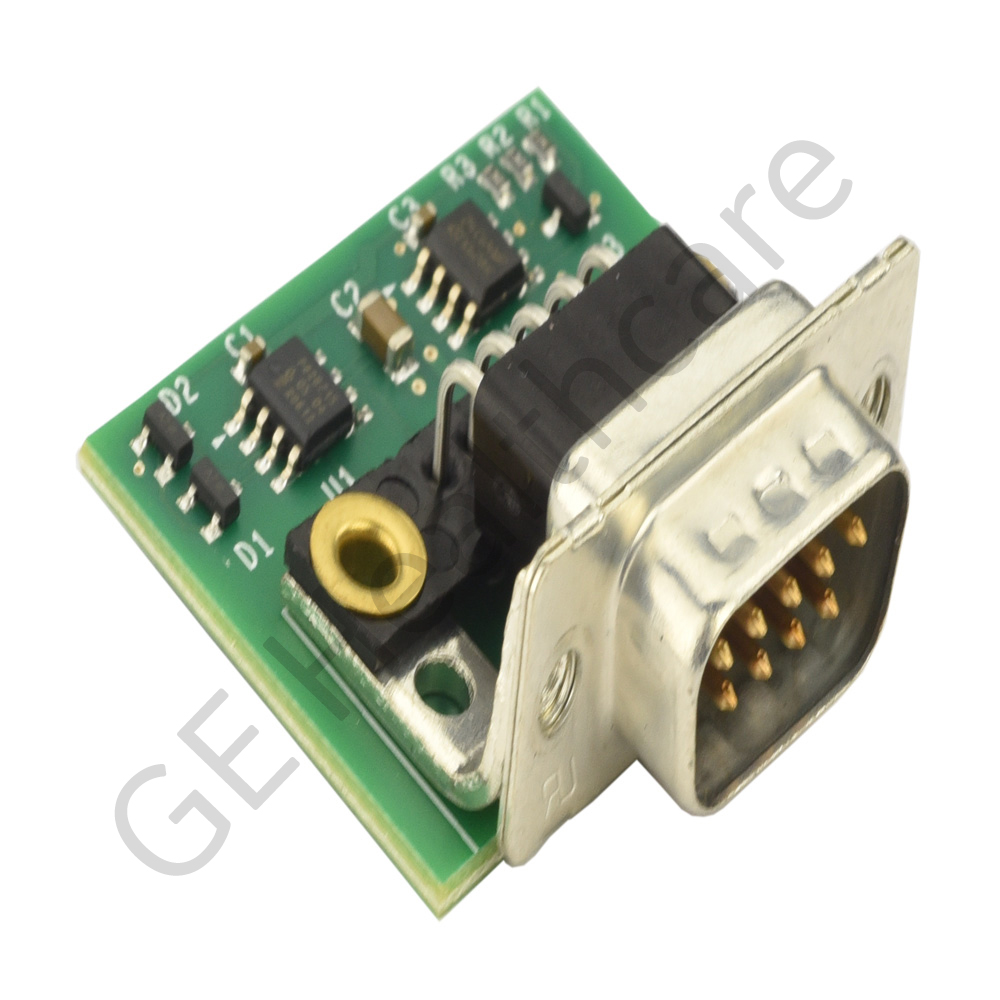

The Detector Memory Board (DMB) assembly is used to store data specific to the detector for use by engineering. It contains configuration of the detector as well as data programmed in the field regarding temperature and scan information. The main components in this circuit board are I2C Bus extender, 64Kb I2C compatible 2-wire Serial EEPROM and Diodes. The memory structure of 64K Bit EEPROM is 8 Kbyte X 8. It has a 9 pin SUB-D type on board plug for the connections. This circuit can be fixed in required unit using pan head tapping screws.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 2285540 |
